feature
1. High-performance electrochemical sensor with high sensitivity and good repeatability. The instrument adopts embedded micro-control technology, which is easy to operate, complete in function and high in reliability.

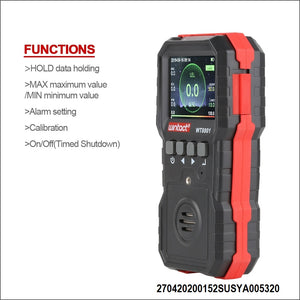

2. Color screen display, friendly interface. There are five icon options in the main menu, namely real-time measurement, inspection record, alarm settings, system settings and calibration.
3. Data recording and review function, continuously recording 12,000 data. The View function displays bar charts and waveforms for easy viewing of data.
4. Bilingual selection: Chinese and English.
5. Three forms of alarm: sound, light and vibration.
6. Battery power is displayed in real time.
7. Can be widely used in petroleum, chemical, environmental protection, metallurgy, oil refining, gas transmission and distribution, biochemical medicine, agricultural research, etc. Can be used to detect certain hydrocarbons (ethane, natural gas, ethane, propane, propane, pentane, hexane, gas oil).
Specification
Test gas: combustible gas (LEL)
Display unit: %LEL
Gas detection: EX
Measuring range: 0~100% LEL
Resolution: 0.1
Accuracy: ≤±5%FS
Indication model: LCD displays real-time date and system status, LED, sound, vibration indication alarm
Response time (90%): less than 30 seconds
Alarm: sound and light vibration alarm
Alarm point: adjustable
Working voltage: DC3.7V, 1800mAh
Battery model: LP103450-1800mAh rechargeable lithium battery
Explosion certificate number: CNEx 18.5122
Explosion-proof mark: Ex ib IIB T3 Gb
Working conditions: -20~50°C/ -4~122°F, <95%
Storage conditions: -10~55°C / 14~122°F, <85%
Charging time: 6-8h
Standby time: more than 8 hours (the working status changes slightly)
Weight: 215.4 grams (with battery and back)
Item size: 71 * 153 * 49mm
Package Included

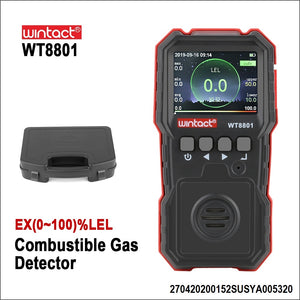

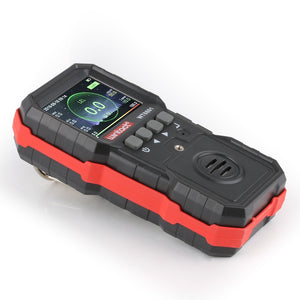

1 * combustible gas detector
1 *plastic tube
1 * USB cable
1 * gas calibration cover
1 *Storage box
1 * User Manual
